Field Note Kit, Small#
A small zippered pouch for field small field notebooks, pens, and whatever other small stationery one might need.
You can get the full SVG pattern file here
Materials#
Material |
Quantity |
Note |
|---|---|---|
Main fabric |
17 cm |
e.g 1000D PU-coated Cordura |
#8 YKK coil zipper |
50 cm |
|
#8 YKK zipper pull |
1 pcs |
|
edge binding |
90 cm |

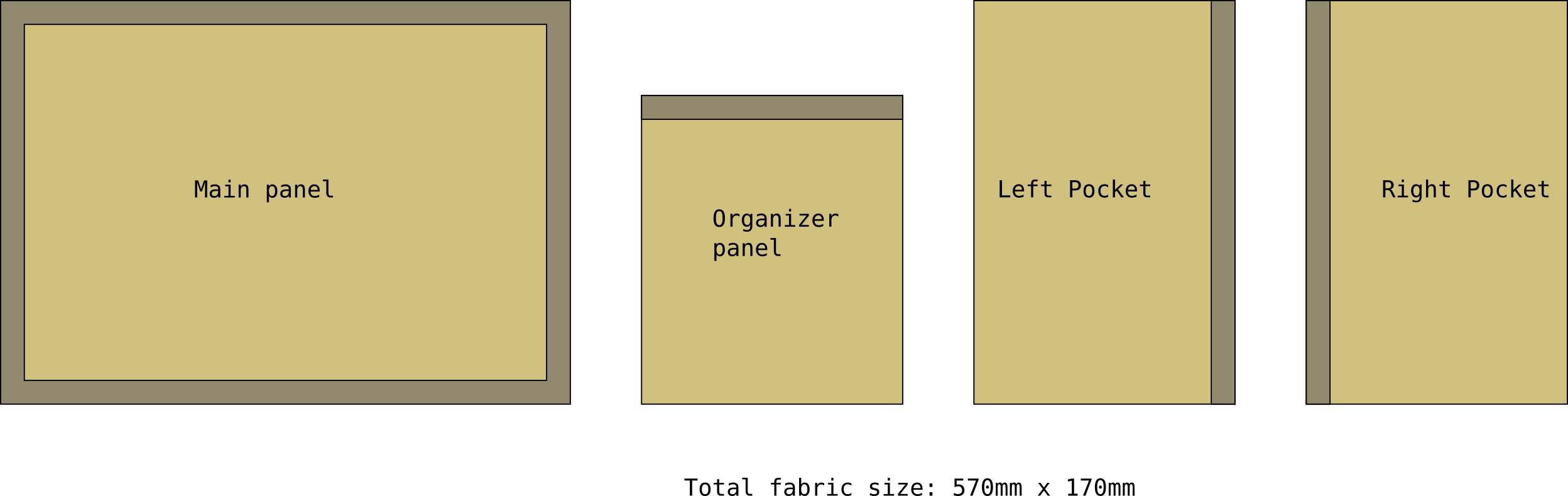

Cut#
To cut all the fabric, you’ll need a at least 17cm of fabric.
Construction#

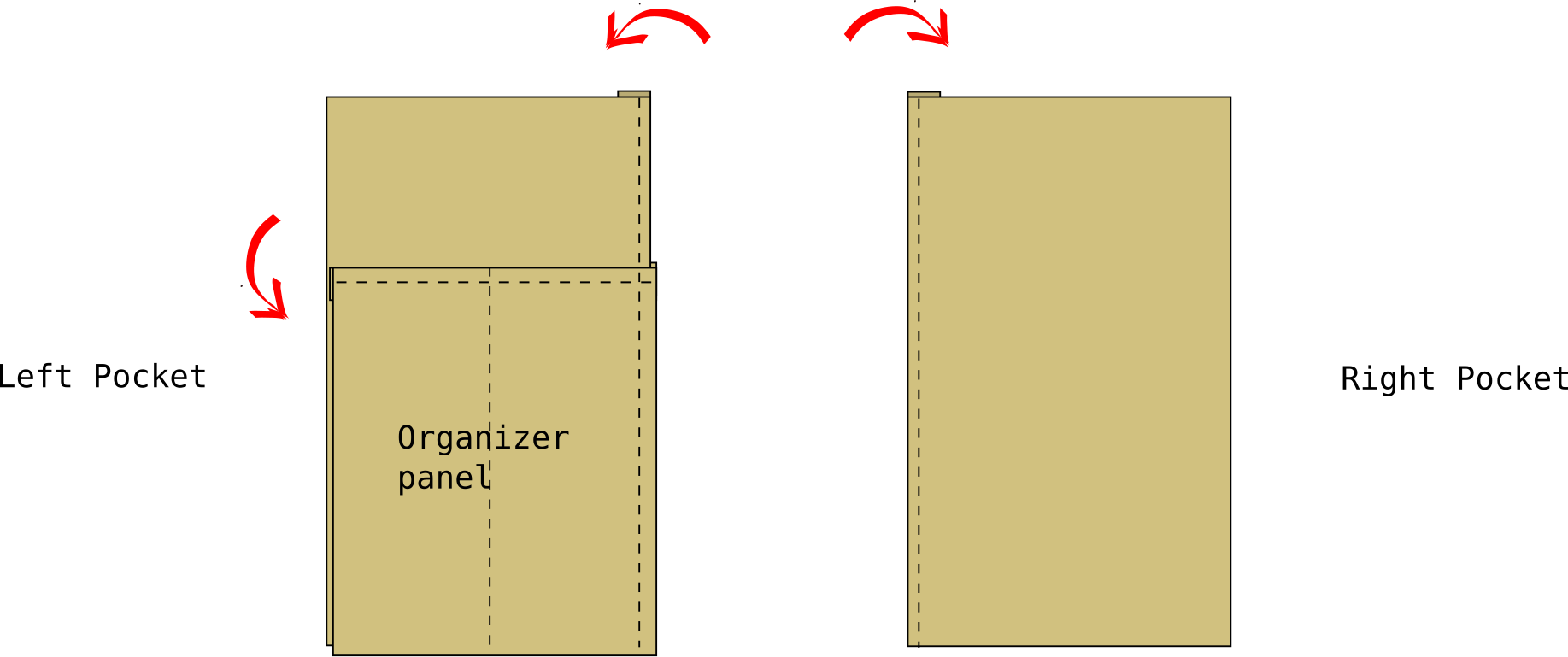

For the left pocket panel:
Start by finishing the top edge of the organizer section by folding the edge and stitching it.
place the organizer section on top of the left pocket section, wrong face of the organizer section facing the right face of the left pocket section.
match the bottom- and right-side edges of both sections
finish the right-side edge of the panel by making a folded hem.
divide the origanizer section into two or more small pockets by making a straight stitch vertically down the center of the section.
For the rigth pocket panel:
Finish the left-side edge of the right pocket section with a folded hem.

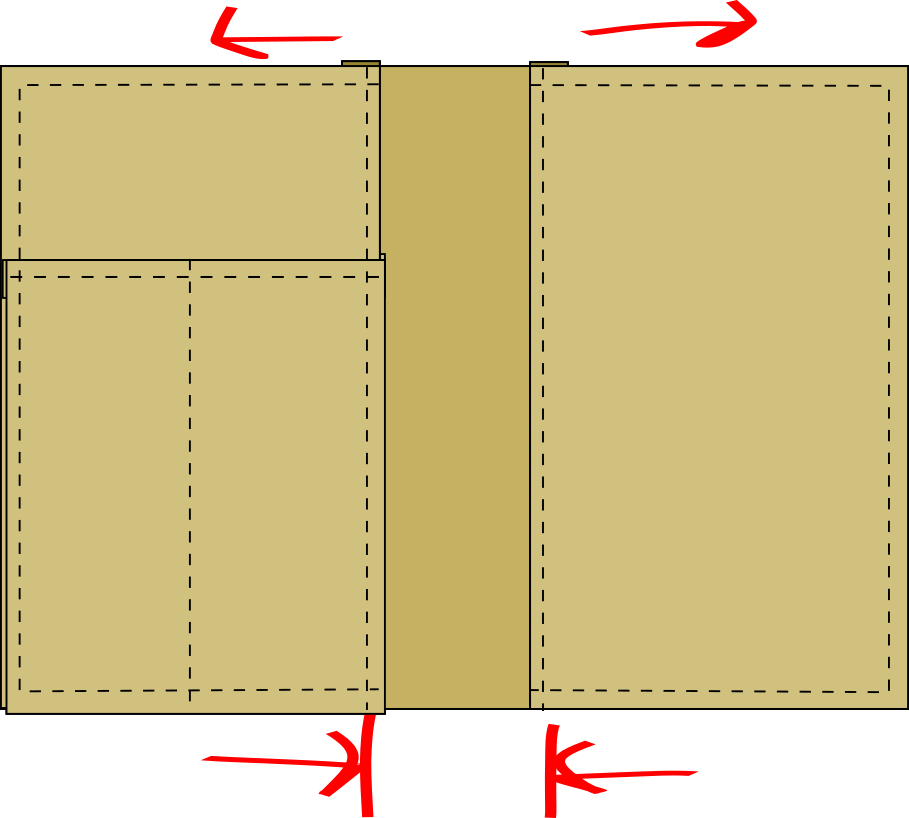

Once both the left pocket panel and the right pocket panel are done:
place both pocket panels on top of the main panel
wrong faces of pocket panels facing the rigth face of the main panel
match the edges with the main panel
stich of baste the pocket panels into palce to complete the main panel

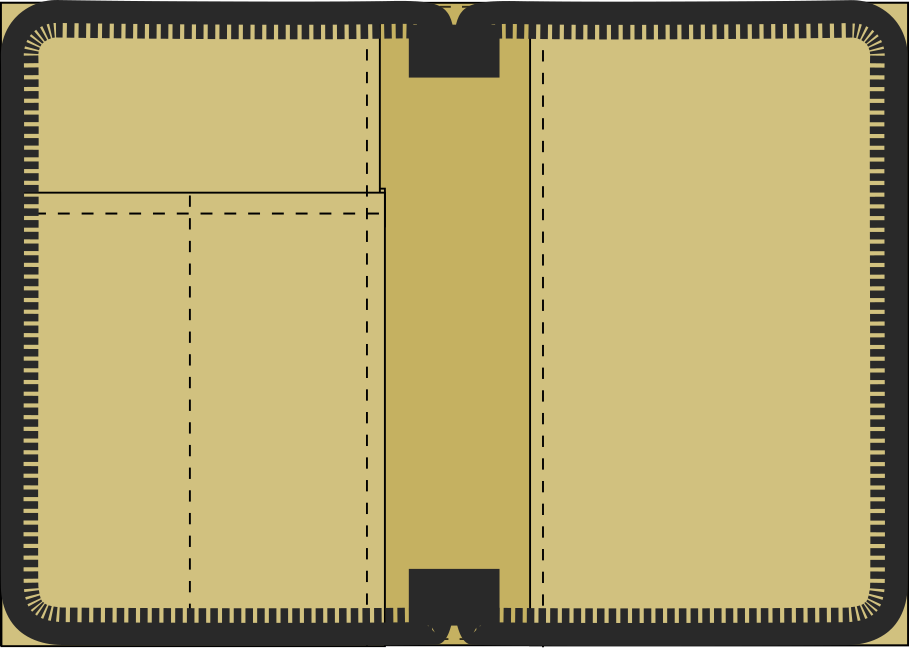

The last step is to add the zipper and hanging loop the the pouch. At the end of the zipper, the right face of the zipper is toward the main panel, while the wrong face of the zipper tape is toward the main panel while the zipper is going around the edges. That is to say, in the 90 degree turn immediately following the beginning, and preceding the end, the face of the zipper gets flipped. Match the edge of the zipper tape with the edge of the main panel when following around the edges.

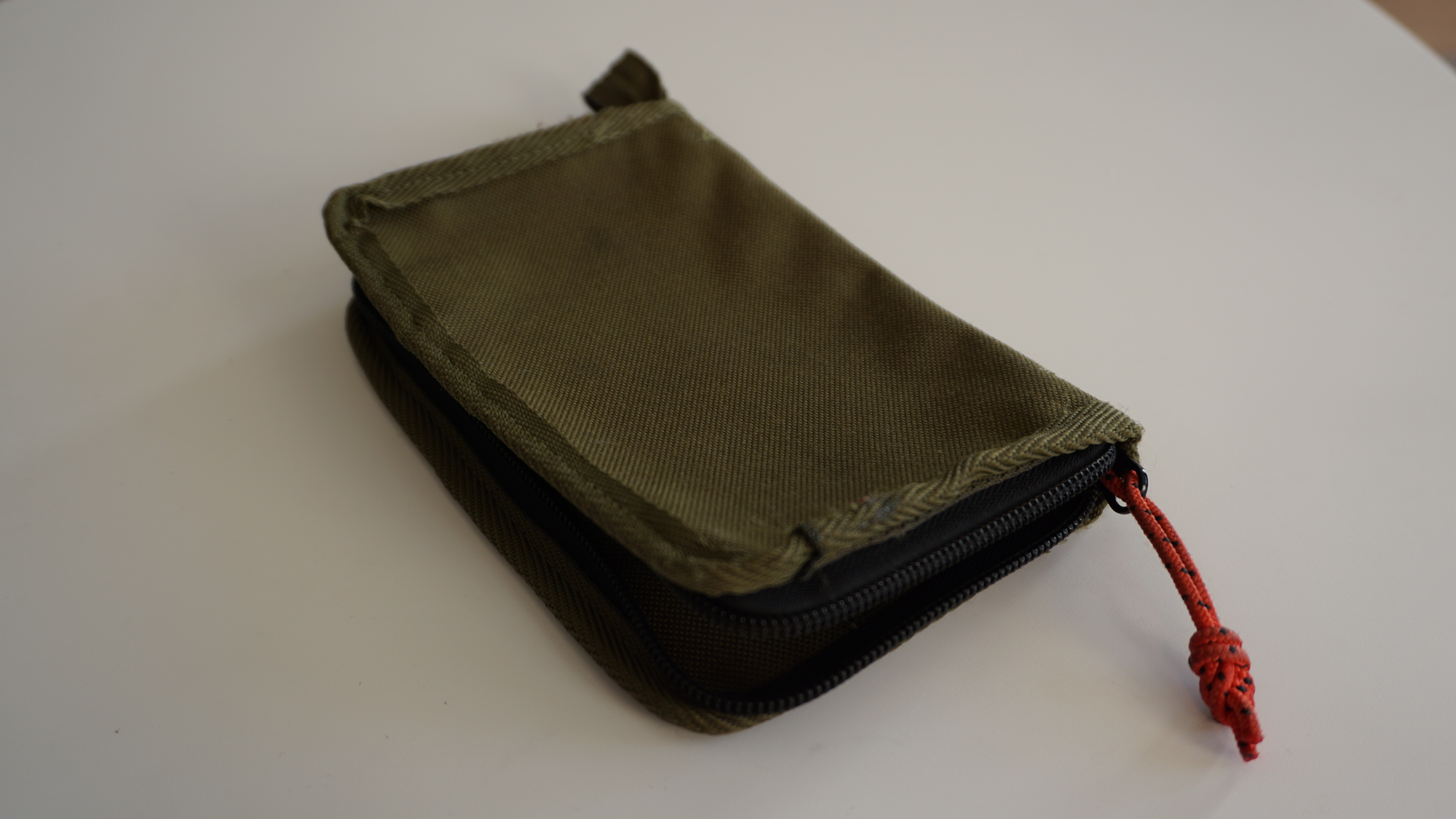

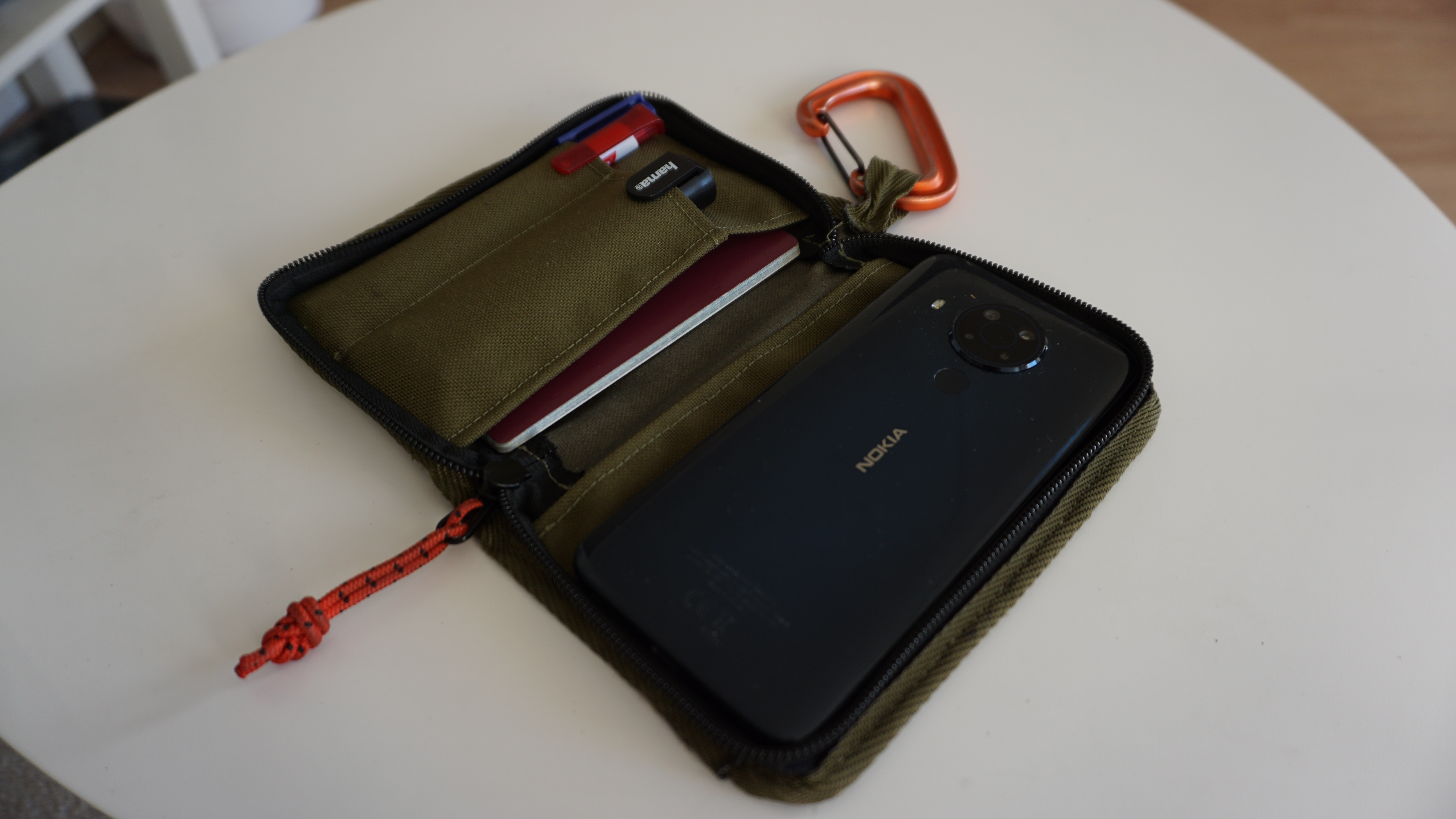

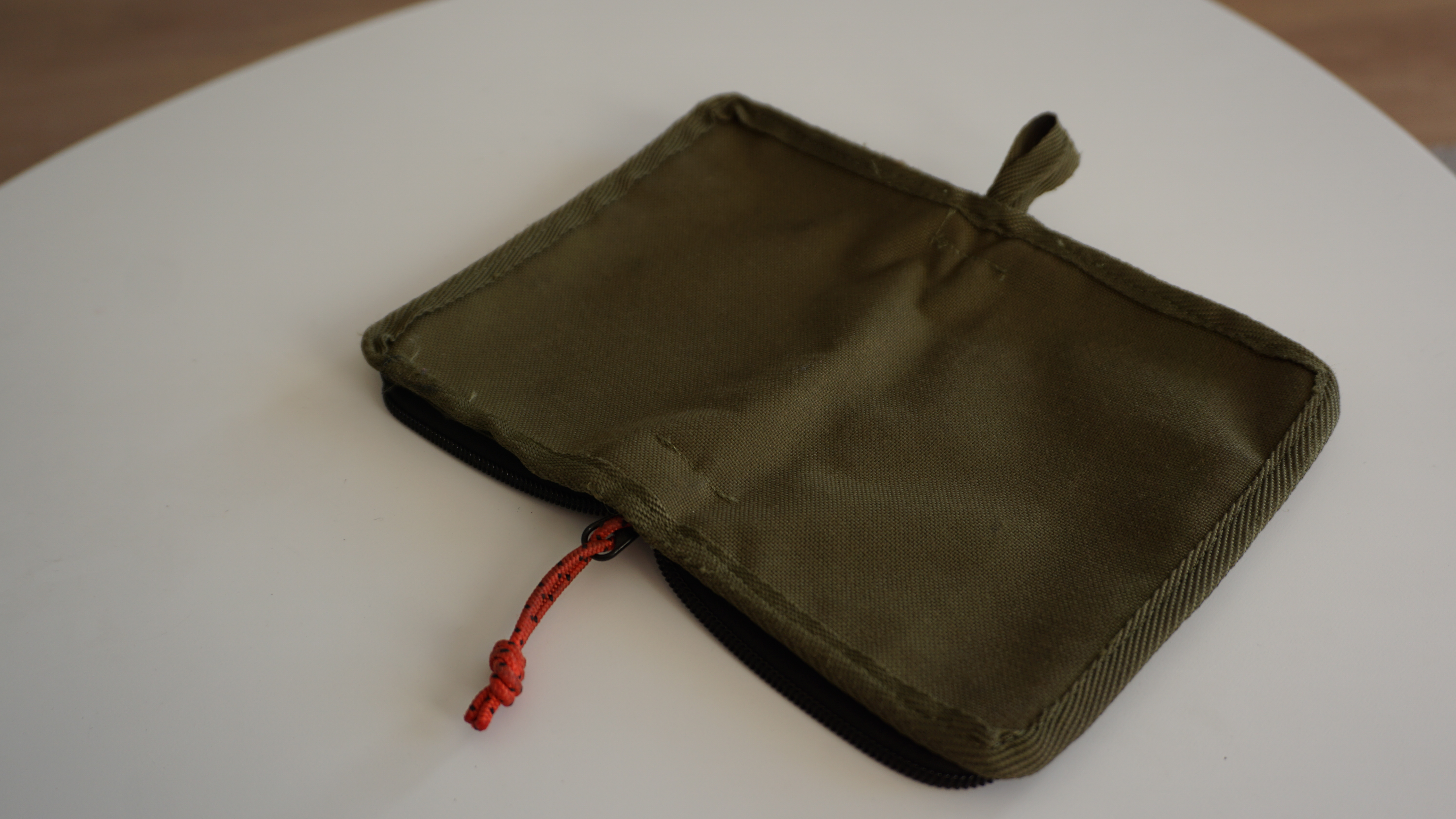

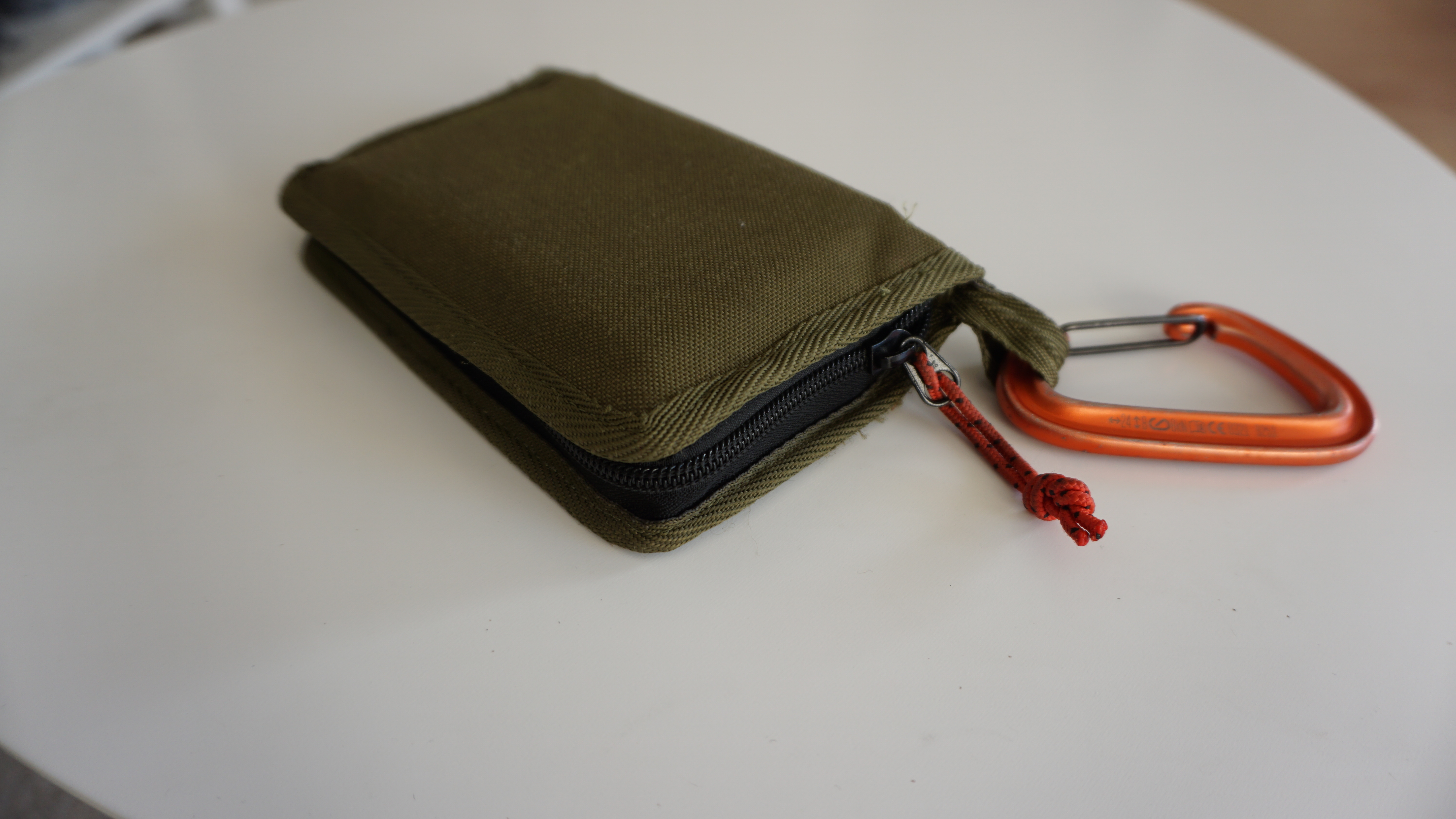

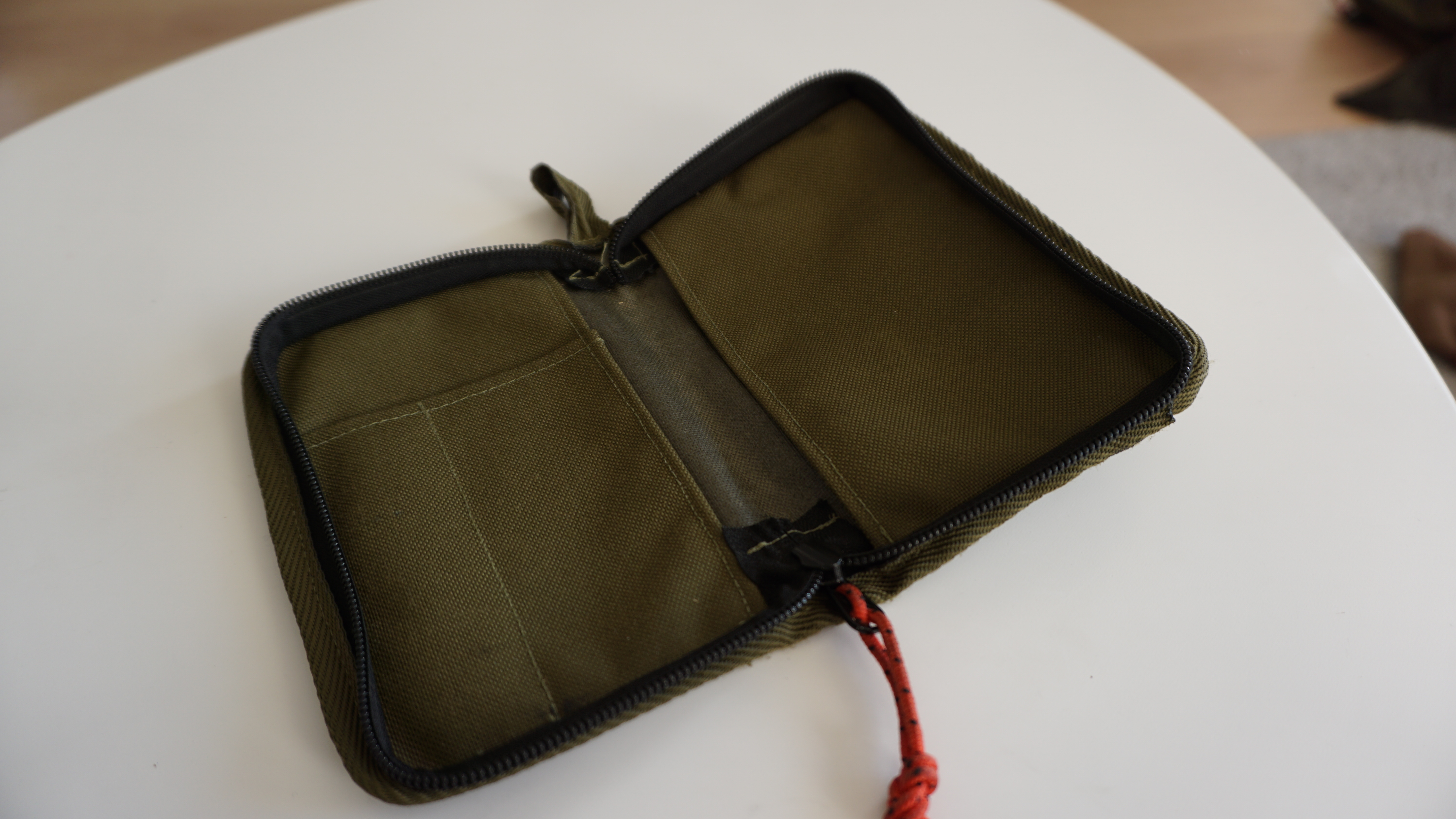

Project Pictures#
